Who is it for?
RL-C800A is positioned for recyclers and cable-processing businesses that need a continuous dry process for mixed waste cable. The supplied specification covers small single-core conductors and larger multi-core/control cables within its stated size range.
Waste cable recycling
Copper and plastic separation
Industrial scrap processing
Dry mechanical separation workflow
Why the multi-stage line?

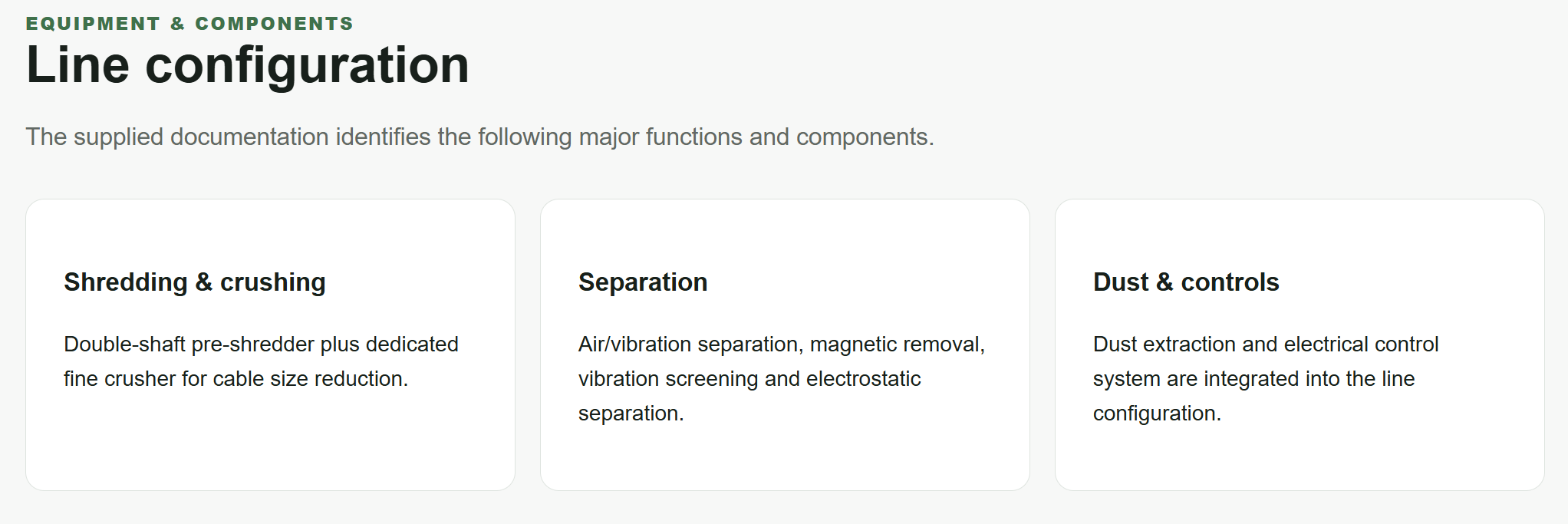

The configuration combines pre-shredding, fine crushing, magnetic removal, air/vibration separation, screening, electrostatic separation and dust extraction. This staged approach is intended to reduce cable size first and then refine the copper/plastic split.
Performance figures are the figures stated in the supplied technical specification; actual results depend on cable composition, feed condition and operating setup.
How it works
A clear, answer-first explanation for buyers evaluating a dry copper granulator.
01
Feed mixed scrap cable into the line.
02
The double-shaft shredder reduces different cable lengths into smaller pieces.
03
The dedicated cable crusher produces material suitable for downstream separation.
04
Copper and plastic are separated using air pressure and vibration.
05
Two vibration screens further separate copper granules from plastic and return copper-bearing fines for re-separation.
06
The electrostatic unit removes remaining copper particles from the plastic stream.
07
Dust and debris are collected by the dust-extraction system.

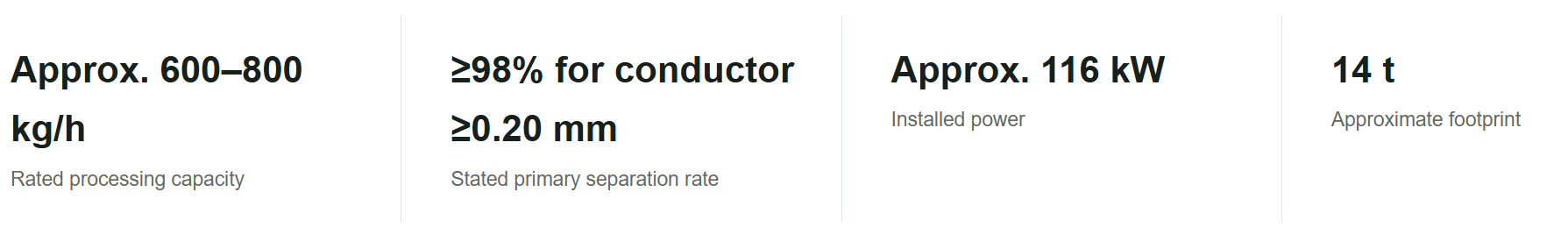

Technical specifications
| Model | RC-C800A |
|---|---|
| Application | Single-core cables ≤5 mm; multi-core/control cables ≤60 mm |
| Rated capacity | Approx. 600–800 kg/h |
| Main crushing motor | 55 kW |
| Pre-shredder motor | 37 kW |
| Conductor diameter for stated separation rate | ≥0.20 mm |
| Stated separation rate | ≥98% for conductor ≥0.20 mm; vibration screening stated at 98–99% |
| Electrostatic separation | ≥99% (as specified) |
| Screen options | 2.5 / 3 / 4 / 5 mm |
| Electrostatic unit | 1800 upgraded type; 8 kW |
| Total installed power | Approx. 116 kW |
| Overall dimensions | Approx. 12 × 8 × 2.35 m |
| Approx. weight | 14 t |
| Warranty | 1 year for complete machine |
The source document lists some component motor values differently between the detailed technical section and the quotation table. Confirm the final electrical bill of materials and total connected load on the final quotation.
FAQ
What cable can the RC-C800A process?
The supplied specification states that the machine is intended for waste single-core cable up to 5 mm and multi-core/control cable up to 60 mm.
What is the capacity of the RC-C800A?
The specification gives an approximate processing capacity of 600–800 kg/h.
What separation performance is specified?
For conductors with a diameter of 0.20 mm or more, the specification states a separation rate of more than 98%. The vibration screening stage is stated at 98–99%, and the electrostatic stage at more than 99%.
Does the RC-C800A include dust collection?
Yes. The specification includes a dust-extraction fan and describes the separation bed as operating together with the dust-collection system.
How large is the complete RC-C800A line?
The quotation section specifies approximately 12 × 8 × 2.35 m and approximately 14 tonnes.
